Model Number : MR-LS-LI01

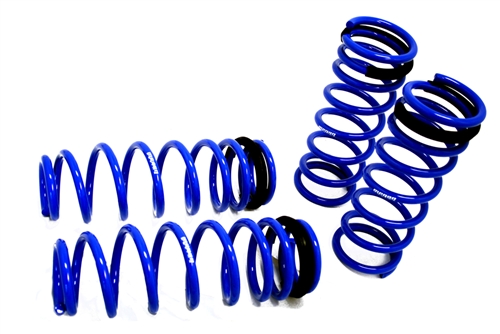

Megan Racing Performance Lowering Springs are constructed of SAE 9254 Cold Wounded Steel, one of the strongest materials available. The high tensile strength and phosphate powder coating delivers outstanding spring rates that are extremely durable and resist premature “sagging?

The result is a spring that specifically offers race-car handling, yet maintains smooth and comfortable ride characteristics. Carefully matched springs rates provide exceptional handling, response, control and balance. These springs offer a generous drop to your car while remaining very “street-able?by having enough clearance to avoid bottoming-out; and the lowered center of gravity improves performance and increases stability, as well as enhancing the appearance of the vehicle. (Note: Spring rates and drop amount vary by different vehicle application and chassis load.)

Specifications & Features:

- Application: Lexus IS300 2001-2005 Sedan only (excludes hatchback/wagon model)

- Color: Blue

- Lower rate: 2" Front, 1.75-2" Rear

- Springs rate: 300F & 250R

- Spring Dimensions:

FRONT: 8.25 coils; TOP Mount: 3 5/16" ID; BOTTOM Mount: 3 3/8" ID

REAR: 9 1/3 coils; TOP Mount 3 1/8" ID; BOTTOM Mount: 2 9/16" ID

OEM spring ID ~3.5" (F/R?)

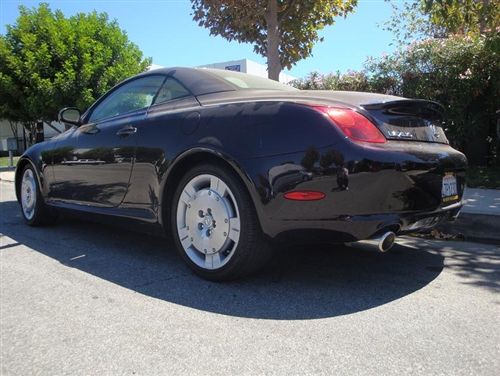

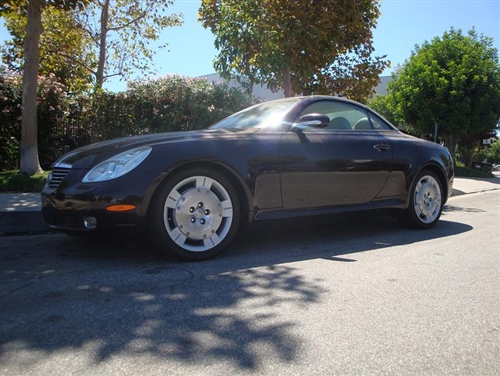

INSTALLATION PHOTOS VIA "my.is forums:"

* All Megan Racing Exhaust and Suspension products are deemed for "off-road use only"
